Preprocessing data

This section covers an example of the second step of a classic workflow: preprocessing the data.

Context

There are many tools and options. In this example, we use TorchVision to transform and augment images and Grain to create data loaders.

NoteMinimal necessary code from previous section

from datasets import load_dataset
import matplotlib.pyplot as plt

train_size = 5 * 750
val_size = 5 * 250

train_dataset = load_dataset("food101",
                             split=f"train[:{train_size}]")

val_dataset = load_dataset("food101",
                           split=f"validation[:{val_size}]")

labels_mapping = {}
index = 0
for i in range(0, len(val_dataset), 250):
    label = val_dataset[i]["label"]
    if label not in labels_mapping:
        labels_mapping[label] = index
        index += 1

inv_labels_mapping = {v: k for k, v in labels_mapping.items()}

def display_datapoints(*datapoints, tag="", names_map=None):
    num_samples = len(datapoints)

    fig, axs = plt.subplots(1, num_samples, figsize=(20, 10))
    for i, datapoint in enumerate(datapoints):
        if isinstance(datapoint, dict):
            img, label = datapoint["image"], datapoint["label"]
        else:
            img, label = datapoint

        if hasattr(img, "dtype") and img.dtype in (np.float32, ):
            img = ((img - img.min()) / (img.max() - img.min()) * 255.0).astype(np.uint8)

        label_str = f" ({names_map[label]})" if names_map is not None else ""
        axs[i].set_title(f"{tag} Label: {label}{label_str}")
        axs[i].imshow(img)

Load packages

Packages necessary for this section:

# general array manipulation
import numpy as np

# for image transformation and augmentation
from torchvision.transforms import v2 as T

# to create data loaders
import grain.python as grain

Data normalization and augmentation

Let’s preprocess our images to match the methods used in the vision transformer (ViT) introduced by Dosovitskiy A et al. [1] and implemented in JAX. This will be useful when we fine tune this model with the Food dataset in another section.

The preprocessing involves normalization and random augmentation (to prevent overfitting) with TorchVision:

img_size = 224

def to_np_array(pil_image):
  return np.asarray(pil_image.convert("RGB"))

def normalize(image):
    mean = np.array([0.5, 0.5, 0.5], dtype=np.float32)
    std = np.array([0.5, 0.5, 0.5], dtype=np.float32)
    image = image.astype(np.float32) / 255.0
    return (image - mean) / std

tv_train_transforms = T.Compose([
    T.RandomResizedCrop((img_size, img_size), scale=(0.7, 1.0)),
    T.RandomHorizontalFlip(),
    T.ColorJitter(0.2, 0.2, 0.2),
    T.Lambda(to_np_array),
    T.Lambda(normalize),
])

tv_test_transforms = T.Compose([
    T.Resize((img_size, img_size)),
    T.Lambda(to_np_array),
    T.Lambda(normalize),
])

def get_transform(fn):
    def wrapper(batch):
        batch["image"] = [
            fn(pil_image) for pil_image in batch["image"]
        ]
        batch["label"] = [
            labels_mapping[label] for label in batch["label"]
        ]
        return batch
    return wrapper

train_transforms = get_transform(tv_train_transforms)
val_transforms = get_transform(tv_test_transforms)

train_dataset = train_dataset.with_transform(train_transforms)
val_dataset = val_dataset.with_transform(val_transforms)

Data loaders

We use Grain to create efficient data loaders:

seed = 12
train_batch_size = 32
val_batch_size = 2 * train_batch_size

train_sampler = grain.IndexSampler(
    len(train_dataset),
    shuffle=True,
    seed=seed,
    shard_options=grain.NoSharding(),
    num_epochs=1,
)

val_sampler = grain.IndexSampler(
    len(val_dataset),
    shuffle=False,
    seed=seed,
    shard_options=grain.NoSharding(),
    num_epochs=1,
)

train_loader = grain.DataLoader(
    data_source=train_dataset,
    sampler=train_sampler,
    worker_count=4,
    worker_buffer_size=2,
    operations=[
        grain.Batch(train_batch_size, drop_remainder=True),
    ]
)

val_loader = grain.DataLoader(
    data_source=val_dataset,
    sampler=val_sampler,
    worker_count=4,
    worker_buffer_size=2,
    operations=[
        grain.Batch(val_batch_size),
    ]
)

Inspect batches

train_batch = next(iter(train_loader))
val_batch = next(iter(val_loader))

print(
    "Training batch info:",
      train_batch["image"].shape,
      train_batch["image"].dtype,
      train_batch["label"].shape,
      train_batch["label"].dtype
)

print(
    "Validation batch info:",
      val_batch["image"].shape,
      val_batch["image"].dtype,
      val_batch["label"].shape,
      val_batch["label"].dtype
)

Training batch info: (32, 224, 224, 3) float32 (32,) int64
Validation batch info: (64, 224, 224, 3) float32 (64,) int64

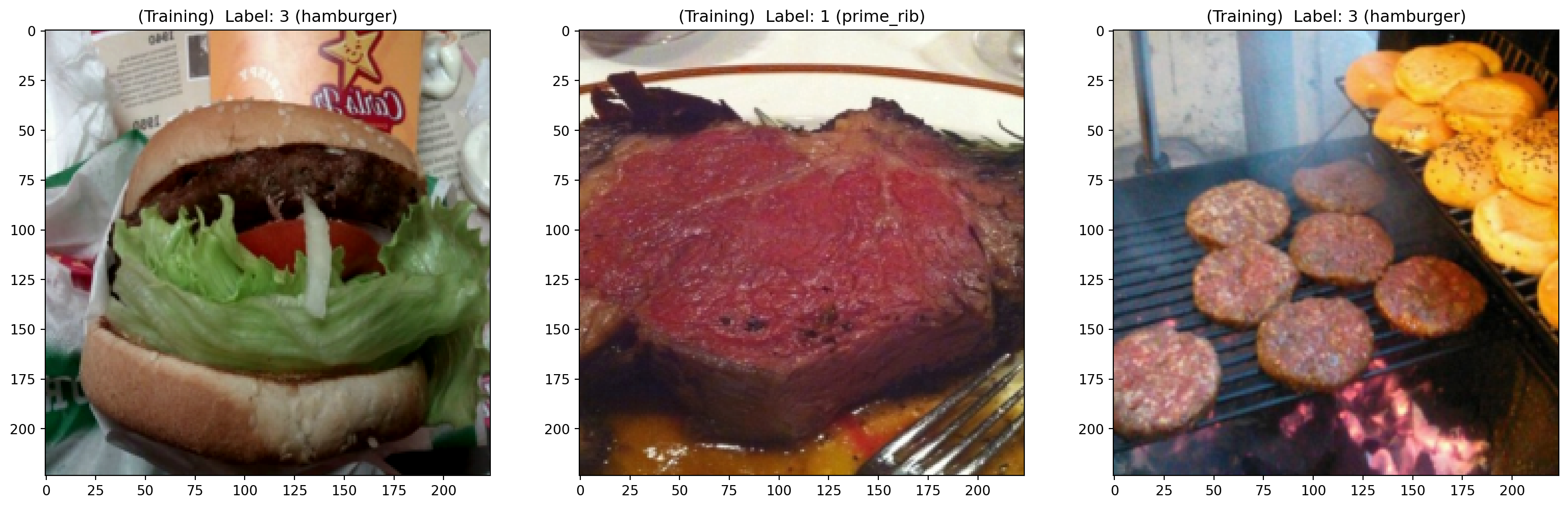

Display the first three training and validation items:

display_datapoints(
    *[(train_batch["image"][i], train_batch["label"][i]) for i in range(3)],
    tag="(Training) ",
    names_map={
        k: train_dataset.features["label"].names[v]
               for k, v in inv_labels_mapping.items()
    }
)

display_datapoints(
    *[(val_batch["image"][i], val_batch["label"][i]) for i in range(3)],
    tag="(Validation) ",
    names_map={
        k: val_dataset.features["label"].names[v]
               for k, v in inv_labels_mapping.items()
    }
)

References

1.

Dosovitskiy A, Beyer L, Kolesnikov A, et al (2021) An image is worth 16x16 words: Transformers for image recognition at scale
