A new markup typesetting system

Author

Marie-Hélène Burle

Content from the webinar slides for easier browsing.

Markup languages

Markup languages define the formatting of documents. They are rendered by software

Examples of markup languages:

  • HTML (HyperText Markup Language) is a declarative, static markup language for creating web documents
  • TeX is a procedural, Turing complete markup language for typesetting PDF documents (LaTeX is a set of macros built on it, making it easier to use)
  • Markdown is a more recent, simple, easy to read and write markup language that can be used for both web and PDF. It is more limited than either HTML or LaTeX, but it can incorporate raw HTML and LaTeX code

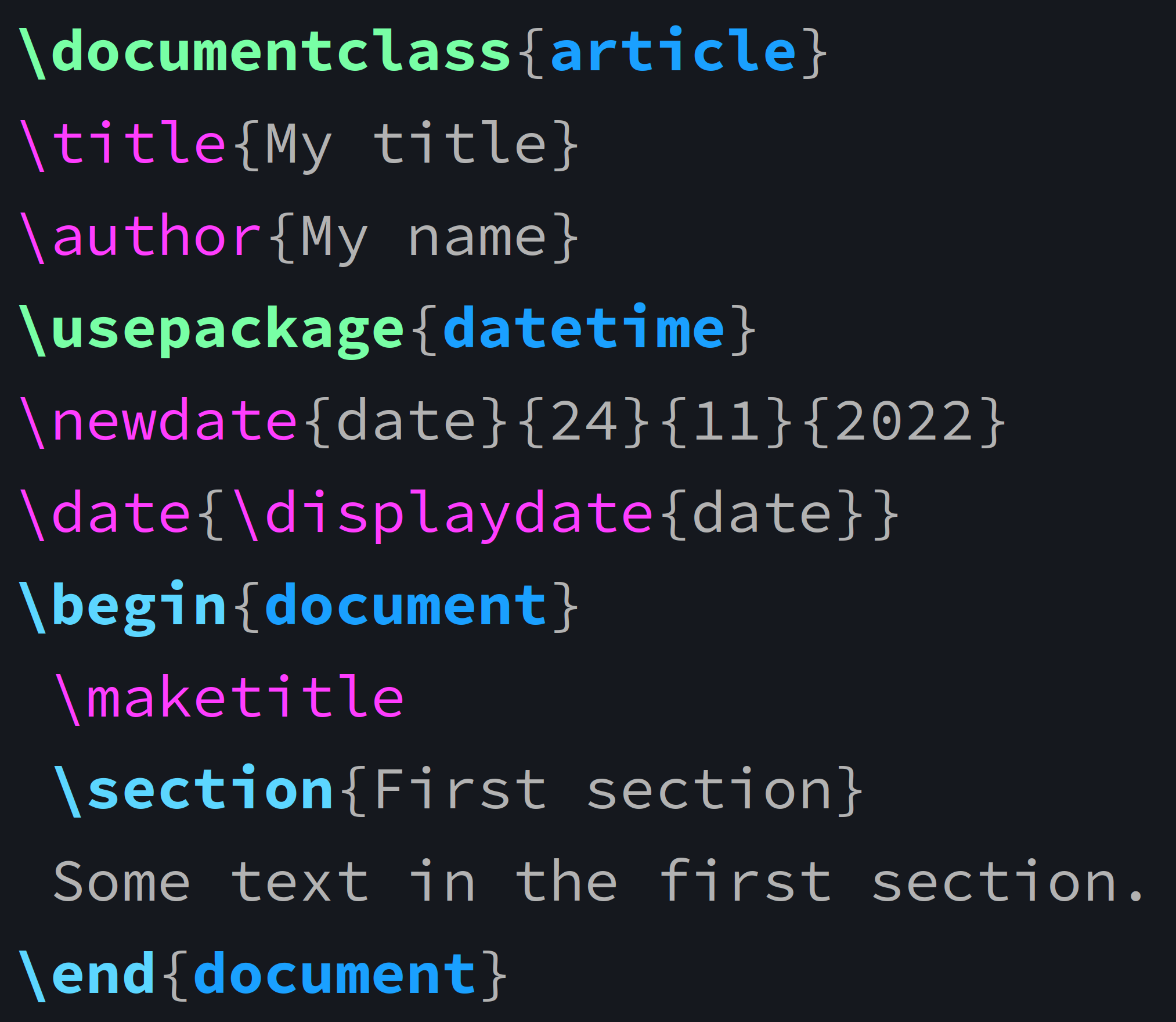

Example in LaTeX

\documentclass{article}
\title{My title}
\author{My name}
\usepackage{datetime}
\newdate{date}{24}{11}{2022}
\date{\displaydate{date}}
\begin{document}
 \maketitle
 \section{First section}
 Some text in the first section.
\end{document}

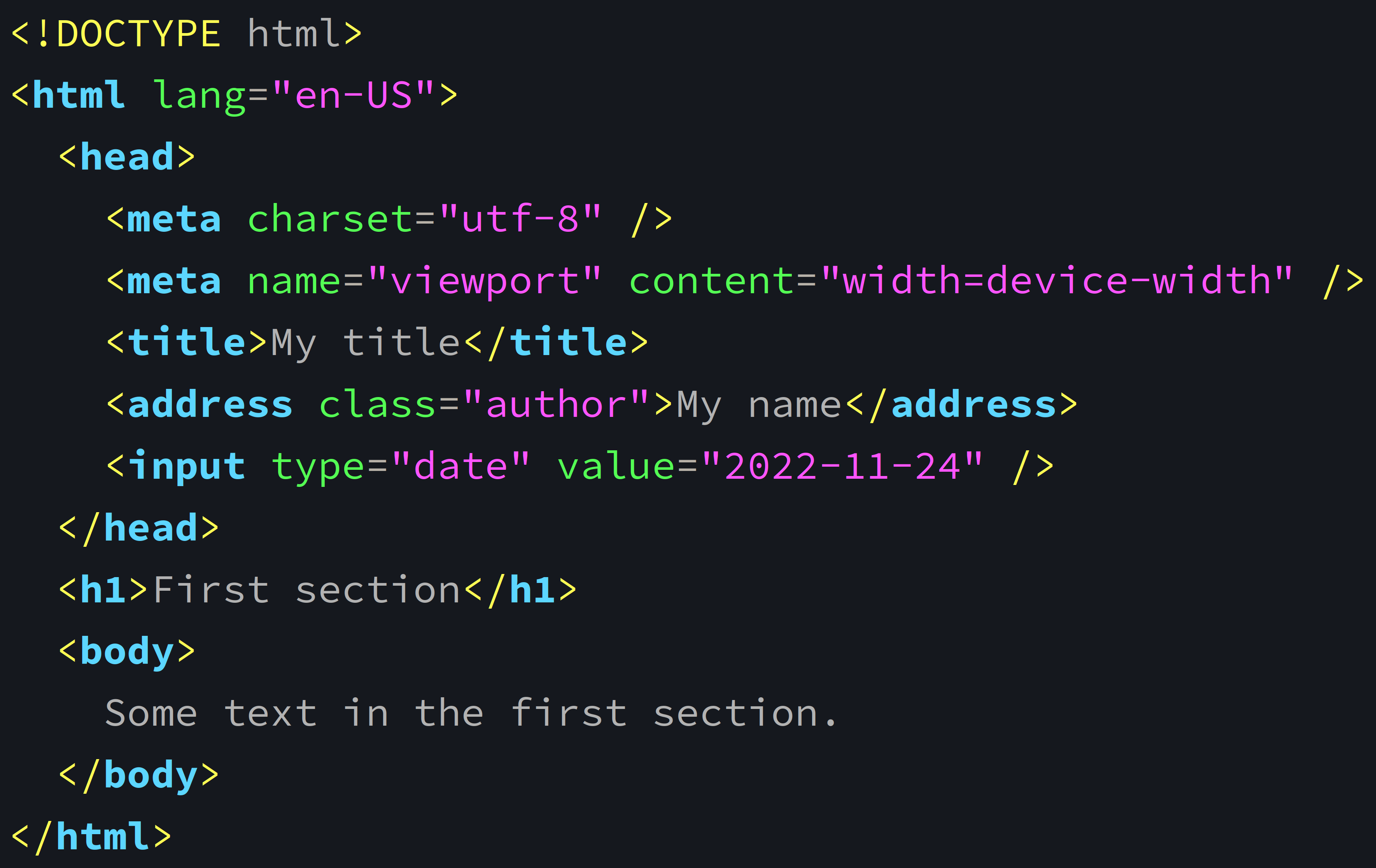

Same example in HTML

<!DOCTYPE html>
<html lang="en-US">
  <head>
    <meta charset="utf-8" />
    <meta name="viewport" content="width=device-width" />
    <title>My title</title>
    <address class="author">My name</address>
    <input type="date" value="2022-11-24" />
  </head>
  <h1>First section</h1>
  <body>
    Some text in the first section.
  </body>
</html>

Typst

A new markup language for typesetting documents (mostly a LaTeX replacement)

Exports to PDF, HTML, PNG, SVG

Live preview thanks to its extremely fast open-source compiler written in Rust and to incremental compilation

Has a modern programming language feel (modules, functions, variables, arrays)

Supported by pandoc

Informative and actionable error messages!

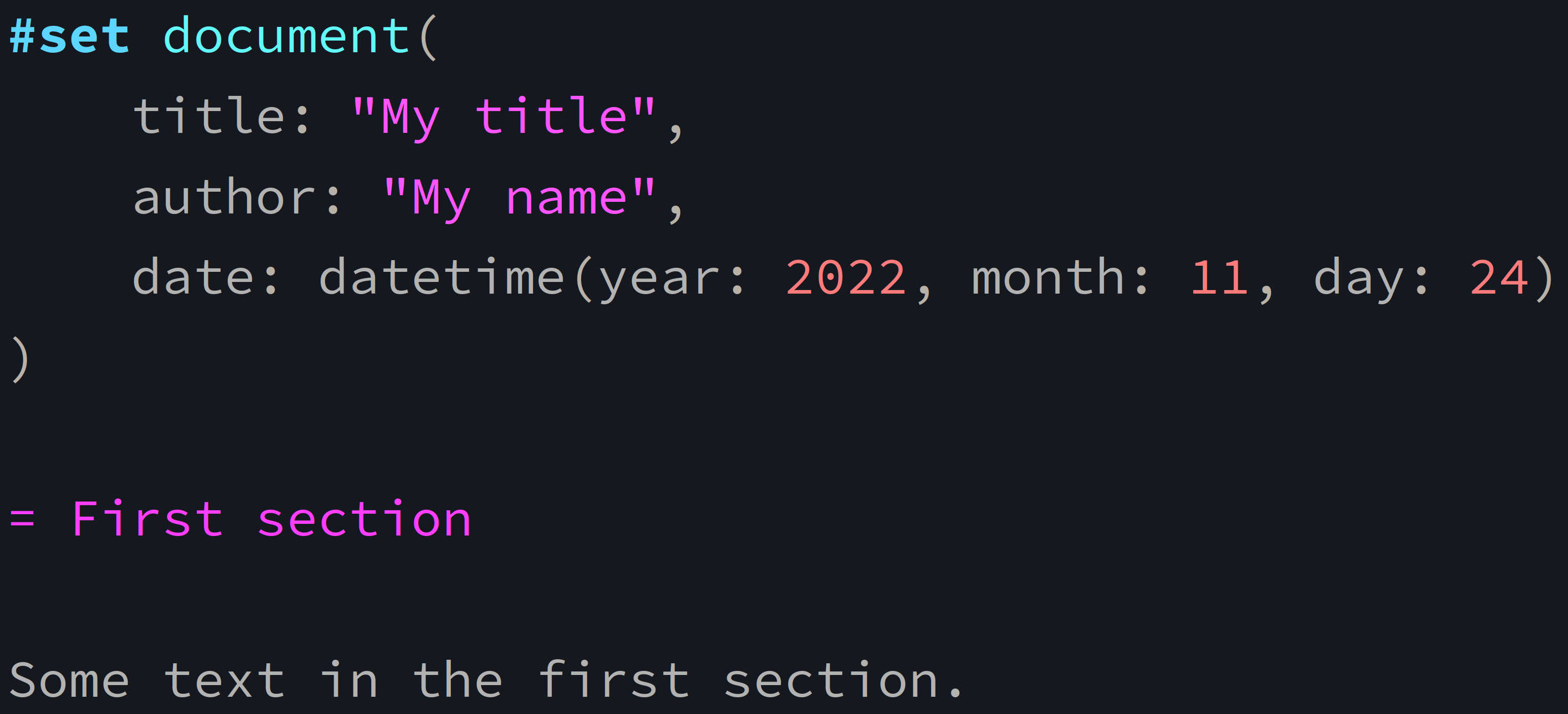

Previous example in Typst

#set document(
    title: "My title",
    author: "My name",
    date: datetime(year: 2022, month: 11, day: 24)
)

= First section

Some text in the first section.

Let’s compare

Limitations

Currently few journals and conferences accept Typst documents

Package ecosystem smaller than LaTeX’s (but growing fast)

No direct equivalent to MathJax to use Typst math as is for HTML (but increasing integration with MathML)

This thread has suggestions and regular updates on this

How to use Typst?

Web app

Typst comes with a web app (requires sign in, free and pro versions)

Provides live preview, syntax highlighting, autocompletion, storage (and collaboration in paid version)

Equivalent to Overleaf for Typst

CLI

Open-source CLI utility

Download the binaries or install it via your package manager or via Rust’s cargo

Write text files with .typ extension in your favourite text editor

Text editors integrations

VS Code

Vim/Neovim

Helix

Emacs

Quarto

Tinymist LSP extension

Available typst.vim/nvim plugins

Tinymist LSP extension

typst-ts-mode for Tree-sitter, tinymist for LSP

Integrated out of the box

Commands

Compile your source file with:

typst compile <your_file.typ>  # creates PDF

Or compile and watch it with:

typst watch <your_file.typ>    # incremental compilation on changes

Help

For general info:

typst help

And for options on sub-command:

typst help <command>

Example:

typst help watch

Markup syntax

= Header level 1
== Header level 2
=== Header level 3
_italic_, *bold*, `monospace`

// Full-line comment
Some text  // End of line comment

Adding a \
line break
Inline equation: $e^(-2 pi i x xi)$

Block equation: $ e^(-2 pi i x xi) $

+ Numbered list item 1
+ Numbered list item 2
    - Nested unnumbered item
    - Nested unnumbered item
        - More nesting unnumbered
        - More nesting unnumbered

Programming-like syntax

// Functions
#image("img/wren.jpg")

// Variables
#let // Tests
#(1 < 2)

// Math functions
#calc.pow(-5, 2)
// Dictionaries
#let capitals = (
    France: "Paris",
    Japan: "Tokyo",
    Canada: "Ottawa"
)

// Loops
#for (country, capital) in capitals [
    - #capital is the capital of #country.
]

Automatic PDF refresh

If you use a PDF viewer that does not automatically refresh on changes, you can force it to do so

Here is an example Bash function that opens a file with mupdf (replace by the viewer of your choice) and automatically refreshes it:

livepdf () {
    mupdf "$1" &
    echo "$1" | entr -p pkill -HUP mupdf
}

Use it with:

livepdf your_pdf.pdf

Citations

Typst uses the hayagriva bibliography manager (written in Rust) with YAML files

Compatible with BibTex

Presentations

polylux

touying

typst-pinit for equations labelling

Graphics

CeTZ, inspired by TikZ

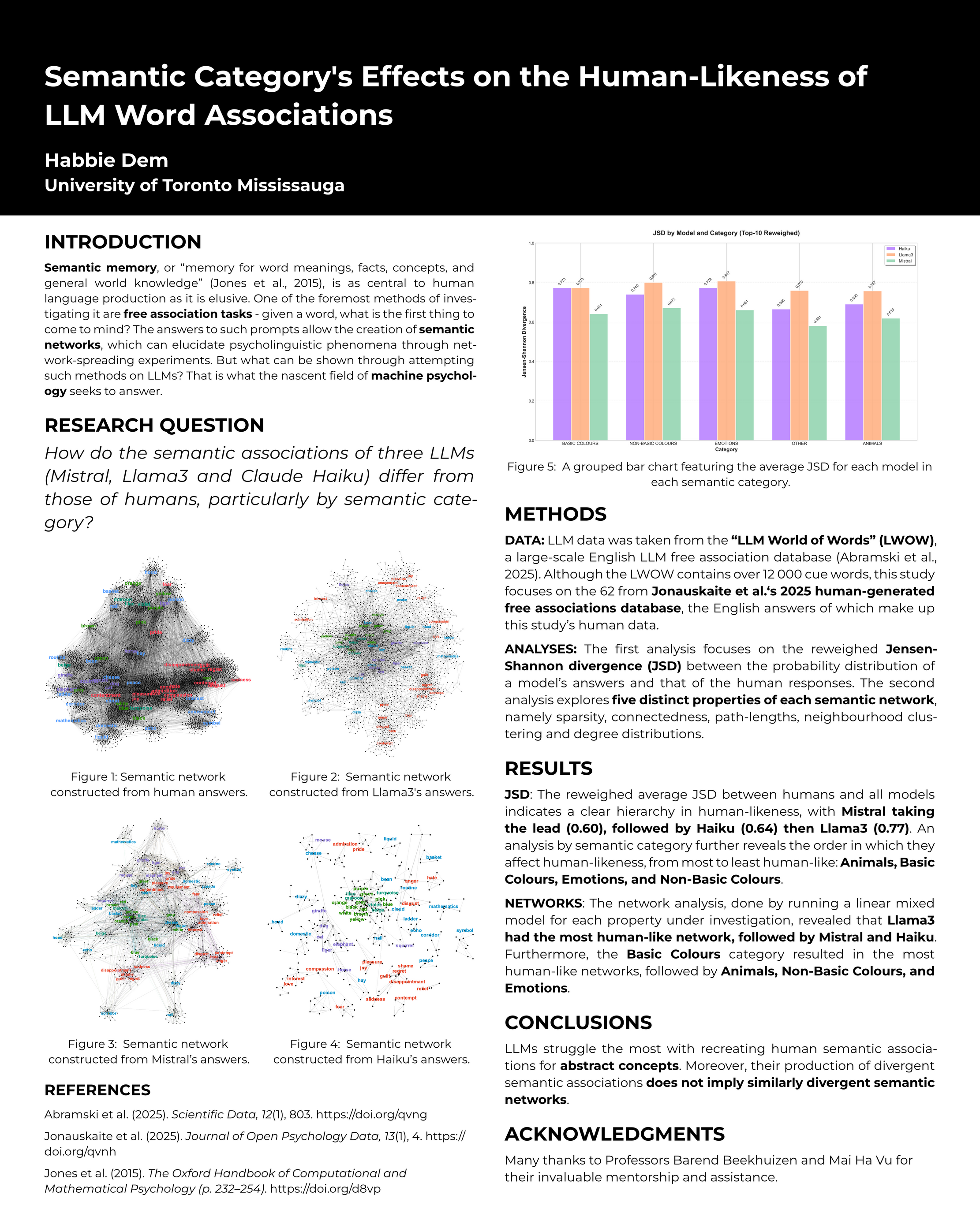

Academic posters

peace-of-posters

Music




typst-chords

Typst universe

Typst universe

Templates

Dis you say Tetris? 🤔

Resources
