The next generation of Python notebooks

Author

Marie-Hélène Burle

Content from the webinar slides for easier browsing.

Notes

I am making an opinionated decision to use uv for installation.
Notebooks are great for prototyping but not at scale.
marimo is not available on the Alliance clusters at this point.

A new notebook

What’s wrong with Jupyter?

Jupyter notebooks are very popular but they come with downsides:

Version control nightmare.
Awkward JSON file format.
Reproducibility issues.

DAG dataflow

marimo notebooks automatically generate an intermediate representation (IR) in the form of a directed acyclic graph (DAG) of:

definitions (defs) of global variables,
references (refs) of global variables.

Each cell is parsed into an abstract syntax tree (AST).

Statically inferred (no runtime tracing).

Python files

Notebooks are saved as .py files.
Each cell is stored as a function.
Pure functions can be reused as modules.

➔

Easy version control.
Directly executable as scripts or web apps.
Readable in text editors.

Interactive elements

marimo.ui creates interactive user interface (UI) elements with first-class support.

Notebooks are automatically updated when values are changed via interactions.

Cool features

Turn notebooks into apps.
Integrated AI.
Docstrings on hover.

The constraints

All this comes at the cost of some constraints:

Global variables must be unique.
In-place transformations are not allowed.
Mutations and attributes are not tracked.

All this is good practice for strict functional programming (and JAX)!

Computation cost

There is a cost to updating the DAG at each change.

Runtime configurations and cell settings allow to control when re-runs happen.

Getting started

Installation

Create a uv project:

uv init --bare

Install marimo in it as a development dependency:

uv add --dev marimo

(Optional) add tools marimo can make use of:

uv add --dev ruff basedpyright mcp

Launch a notebook

marimo edit notebook.py

If you installed with uv, first activate the virtual env or run instead:

uv run marimo edit notebook.py

Configuration

Via GUI

top right corner (Notebook settings) ➔ User settings

Package manager

noshadow ➔ User settings ➔ Packages & Data ➔ Package Management ➔ Manager: uv

AI pair programming

Code completion

Use GitHub Copilot without account.

AI assistant

Use any of the classic LLMs with API key.

MCP servers

marimo docs
Context7

User settings are saved in ~/.config/marimo/marimo.toml (or similar in different OS).

[mcp]
presets = ["marimo", "context7"]

[mcp.mcpServers]

[runtime]
watcher_on_save = "lazy"
auto_reload = "off"
default_sql_output = "auto"
auto_instantiate = true
std_stream_max_bytes = 1000000
default_auto_download = []
on_cell_change = "autorun"
output_max_bytes = 8000000
reactive_tests = true

[formatting]
line_length = 79

[completion]
copilot = "github"
activate_on_typing = true

[snippets]
custom_paths = []
include_default_snippets = true

[keymap]
preset = "default"
destructive_delete = true

Logs are found at ~/.cache/marimo/logs (or similar).

Official website

Excellent documentation:

User guides.

API reference.

Tutorials

marimo tutorial intro

For more tutorials, replace intro with any of:

dataflow
ui
markdown
plots
sql
layout
fileformat
markdown-format
for-jupyter-users

If you installed with uv, first activate the virtual env or run instead:

uv run marimo tutorial intro

Key bindings

Vim kbd available.

Command mode

Esc

With vim keybindings are enabled or other issues, use Ctrl+Esc or Shift+Esc instead.

Navigation between cells, copy/cut/paste cells.

Edit mode

Enter or click on a cell.

Edit content.

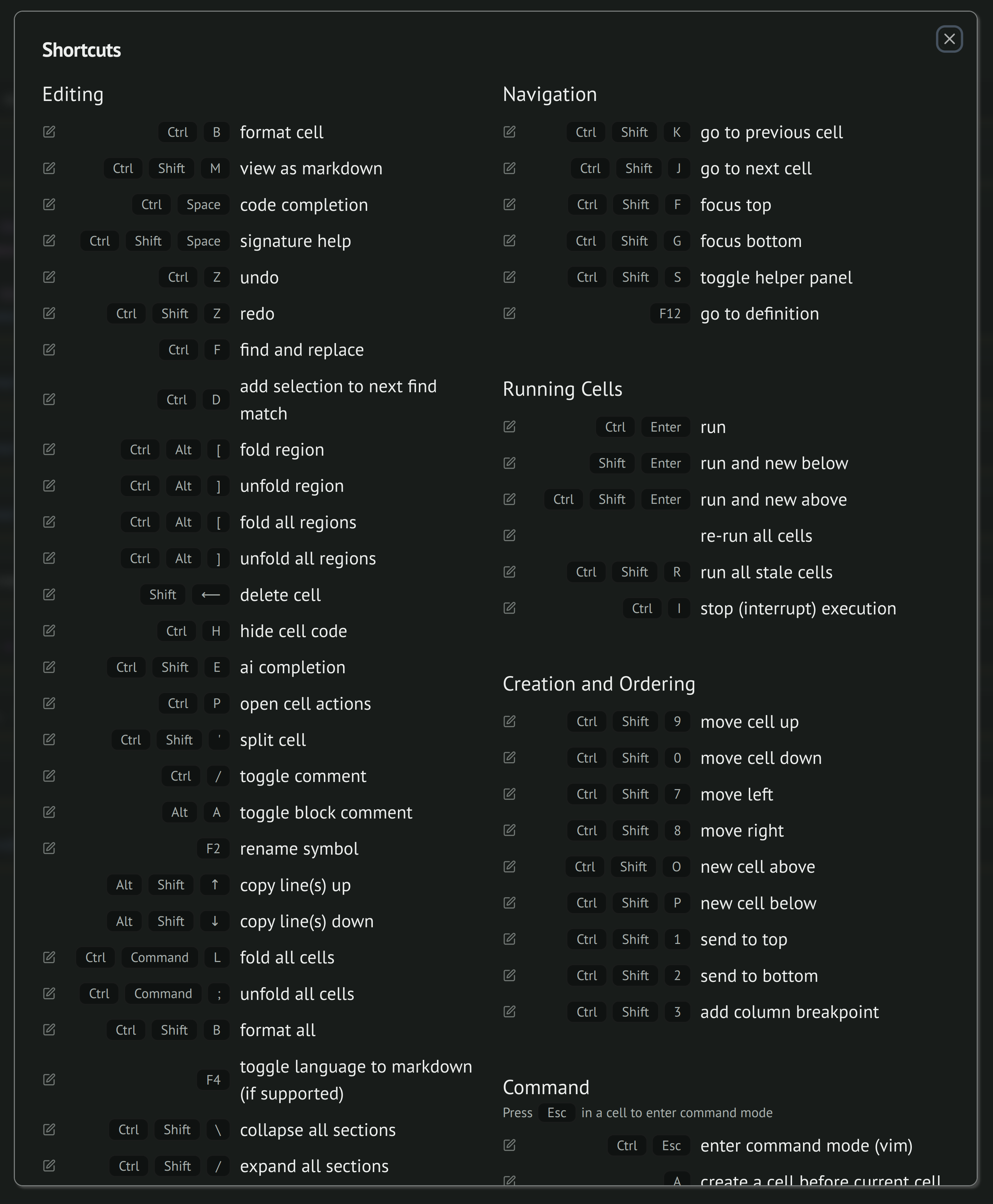

Customizable. List displayed by Ctrl-Shift-h.

ipynb notebooks conversion

marimo convert notebook.ipynb -o notebook.py

IPython magics are replaced by Python functions.

After a uv install, run (or activate the virtual env):

uv run marimo convert notebook.ipynb -o notebook.py

General Usage

Installing Python packages

Directly in the notebook following a pop-up when trying to use uninstalled package.

Of course this can also be done via the command line:

uv add <package>

Example:

uv add numpy

Outputs displays

Console outputs

Text written to stdout/stderr

➔ displayed below cells by default,
➔ hidden in app mode.

Example:

cell

print("This is a console output.")

Cell outputs

➔ displayed above cells by default,
➔ shown in app mode.

Example:

cell

"This is a cell output."

Forbidden re-assignments

Variables re-assignments are OK within cells, but not across cells.

The cells with re-assignments will not run.

Reusing i in loops across cells won’t work.

+=, -=, etc. won’t run.

Solutions

Use cell local variables

Variables prefixed with _ are cell local.

(names can thus be reused between cells).

cell 0

_a = 3
print(_a)

cell 1

print(_a)

name '_a' is not defined

_i can be reused between cells:

cell

for _i in range(10):
    print(_i)

Wrap in functions

Functions create local environments.

Variables created in functions don’t enter the global environment.

➔ their names can be reused in functions in different cells.

cell

def _():
     for i in range(10):
         print(i)

_()

Mutations do not call re-runs

Let’s consider:

cell 0

l = [1, 2, 3]

cell 1

len(l)

cell 2

l.append(4)

running the cell 2 will not update cell 1.

Solutions

Mutate variables in the cells in which they are defined:

cell 0

l = [1, 2, 3]
l.append(4)

cell 1

len(l)

Create new variables:

cell 0

l = [1, 2, 3]

cell 1

len(l)

cell 2

l2 = l + [4]

cell 3

len(l2)

Deleting cells

Automatically deletes variables defined in them (and cells with refs to them are re-run).

No cycles permitted

This would make the DAG impossible:

cell 0

var1 = 4
print(var2)

cell 1

var2 = 7
print(var1)

Attributes are not tracked

Assignments to attributes aren’t tracked:

cell 0

class Object(object):
    pass

obj = Object()
obj.somefield = "somevalue"

cell 1

print(obj.somefield)

cell 2

obj.somefield = "newvalue"

cell 1 is not re-run and updated automatically.

Dataflow programming

Execution order $\neq$ cell order.

The execution order is determined by the DAG.

This is a totally valid notebook:

cell 0

print(new_var)

cell 1

new_var = 8

These are perfectly equivalent notebooks (they have the same DAG):

cell 0

a = 3

cell 1

a1 = 8.9
a2 = 8.3

cell 2

a3 = 3.0

cell 3

a4 = 1.2

cell 4

my_list = [a1, a2, a3, a4]

cell 0

my_list = [a1, a2, a3, a4]

cell 1

a = 3

cell 2

a3 = 3.0

cell 3

a1 = 8.9
a2 = 8.3

cell 4

a4 = 1.2

Dataflow navigation

Here is our notebook:

cell 0

a = 3

cell 1

a1 = 8.9
a2 = 8.3

cell 2

a3 = 3.0

cell 3

a4 = 1.2

cell 4

my_list = [a1, a2, a3, a4]

This is the corresponding DAG:

Navigating and understanding the dataflow is made easy by a number of tools:

Minimap (Ctrl-Shift-i).
Dependency explorer (left menu).
Reference highlighting and jumping (hover on underlined refs, Ctrl+click to jump to defs).

Managing runs

Re-running heavy computations to update the notebooks can be costly.

This can be controlled by disabling/enabling:

autorun on startup,
autorun on cell change (lazy execution),
specific cells.

Markdown

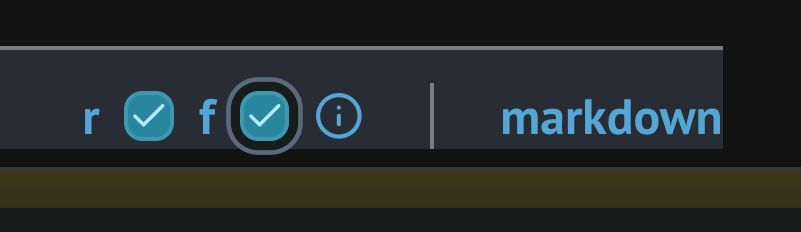

You can turn cells into markdown and select raw strings and/or f-string.

at the bottom right corner of every cell.

Markdown extensions

cell

/// details | Click for details.

You can create accordion blocks.
///

cell

/// admonition | Tips

You can create info blocks.
///

cell

/// attention | Be careful!

You can create warning blocks.
///

Plots

Plotting works as you would expect.

JavaScript interactivity also works.

cell

import plotly.express as px
df = px.data.tips()

fig = px.density_contour(df, x="total_bill", y="tip")
fig.update_traces(contours_coloring="fill", contours_showlabels = True)
fig.show()

Script

You can run a notebook as a script, without having to do any conversion, with:

python notebook.py

Apps

You can run a notebook as an app with:

marimo run notebook.py

AI

Completion

Provided out of the box with GitHub Copilot. Tab to complete.

Generate cells with AI

Box at the bottom of notebook.

Cells refactoring

In the menu of each cell.

Chat

Button on the left menu opens a chat panel.

Going crazy

marimo new asks an LLM to generate a full notebook from scratch:

Example:

marimo new "Create a cool-looking 3D plot with matplotlib."

Interactive UI

The marimo module

Every notebook loads the marimo module automatically.

Interactive elements make use of the module, so it is convenient to create an alias:

cell 0

import marimo as mo

Create an interactive element

You create an element with one of the mo.ui methods.

Call it at the end of the cell to display it:

cell 1

slider = mo.ui.slider(start=1, stop=10, step=1)
slider

UI elements are defs.

You can embed it in a markdown output and format it with an f-string:

cell 1

slider = mo.ui.slider(start=1, stop=10, step=1)
mo.md(f"Pick a value: {slider}")

Access the value

You then need to access its value in another cell:

cell 2

slider.value

Which you can also embed in some markdown:

cell 2

mo.md(f"You picked the value: {slider.value}")

Example

Create a date selector element:

cell 0

date = mo.ui.date()
mo.md(f"Select a date: {date}")

Print the selected date:

cell 1

mo.md(f"Your selected date is: {date.value}")

Progress bars

Similar to tqdm:

cell

import time

for i in mo.status.progress_bar(range(50)):
    print(i)
    time.sleep(0.1)

Under the hood

Python files for notebooks

Notebooks get written in Python as:

notebook.py

import marimo

__generated_with = "<some version>"
app = marimo.App()

"<your cells go here>"

if __name__ == "__main__":
    app.run()

Notebook settings

Added as:

notebook.py

import marimo

__generated_with = "<some version>"
app = marimo.App(width="medium", css_file="custom.css", auto_download=["html"])

"<your cells go here>"

if __name__ == "__main__":
    app.run()

What are cells really?

Cells are functions wrapped by an @app.cell decorator.

This makes them easy to turn into apps.

When you create an empty cell, your .py file (let’s call it notebook.py) sees the following added:

notebook.py

@app.cell
def _():
    return

Now, add in the cell:

cell 0

x = 8
y = 9

and you get in your .py file:

notebook.py

@app.cell
def _():
    x = 8
    y = 9
    return

Hide the code and the script turns into:

notebook.py

@app.cell(hide_code=True)
def _():
    x = 8
    y = 9
    return

References

Cell dependencies are passed as arguments to the function:

Notebook cells:

cell 1

print(x)

cell 2

print(x, y)

Corresponding Python file:

notebook.py

@app.cell
def _(x):
    print(x)
    return

notebook.py

@app.cell
def _(x, y):
    print(x, y)
    return

Print refs and defs

mo.defs and mo.refs output the defs and refs of a cell:

cell 0

var = 8
print(f"The defs are: {mo.defs()} and the refs are: {mo.refs()}")

cell 1

var + 7
print(f"The defs are: {mo.defs()} and the refs are: {mo.refs()}")

How is md turned into Python?

Markdown text is wrapped in mo.md functions:

notebook.py

@app.cell
def _(mo):
    mo.md(
        r"""
    ## Heading

    Some markdown with some *italic* formatting.
    """
    )
    return
