Plotting

Author

Marie-Hélène Burle

This section focuses on plotting in R with the package ggplot2 from the tidyverse.

The data

R comes with a number of datasets. You can get a list by running data(). The ggplot2 package provides additional ones. We will use the mpg dataset from ggplot2.

To access the data, let’s load the package:

library(ggplot2)

Here is what that dataset looks like:

mpg

# A tibble: 234 × 11
   manufacturer model      displ  year   cyl trans      drv     cty   hwy fl
   <chr>        <chr>      <dbl> <int> <int> <chr>      <chr> <int> <int> <chr>
 1 audi         a4           1.8  1999     4 auto(l5)   f        18    29 p
 2 audi         a4           1.8  1999     4 manual(m5) f        21    29 p
 3 audi         a4           2    2008     4 manual(m6) f        20    31 p
 4 audi         a4           2    2008     4 auto(av)   f        21    30 p
 5 audi         a4           2.8  1999     6 auto(l5)   f        16    26 p
 6 audi         a4           2.8  1999     6 manual(m5) f        18    26 p
 7 audi         a4           3.1  2008     6 auto(av)   f        18    27 p
 8 audi         a4 quattro   1.8  1999     4 manual(m5) 4        18    26 p
 9 audi         a4 quattro   1.8  1999     4 auto(l5)   4        16    25 p
10 audi         a4 quattro   2    2008     4 manual(m6) 4        20    28 p
   class
   <chr>
 1 compact
 2 compact
 3 compact
 4 compact
 5 compact
 6 compact
 7 compact
 8 compact
 9 compact
10 compact
# ℹ 224 more rows

?mpg will give you information on the variables. In particular:

displ contains data on engine displacement (a measure of engine size and thus power) in litres (L).
hwy contains data on fuel economy while driving on highways in miles per gallon (mpg).
drv represents the type of drive train (front-wheel drive, rear wheel drive, 4WD).
class represents the type of car.

We are interested in the relationship between engine size and fuel economy and see how the type of drive train and/or the type of car might affect this relationship.

Base R plotting

R contains built-in plotting capability thanks to the plot() function.

A basic version of our plot would be:

plot(
  mpg$displ,
  mpg$hwy,
  main = "Fuel consumption per engine size on highways",
  xlab = "Engine size (L)",
  ylab = "Fuel economy (mpg) on highways"
)

Grammar of graphics

Leland Wilkinson developed the concept of grammar of graphics in his 2005 book The Grammar of Graphics. By breaking down statistical graphs into components following a set of rules, any plot can be described and constructed in a rigorous fashion.

This was further refined by Hadley Wickham in his 2010 article A Layered Grammar of Graphics and implemented in the package ggplot2 (that’s what the 2 “g” stand for in “ggplot”).

ggplot2 has become the dominant graphing package in R. Let’s see how to construct a plot with this package.

Plotting with `ggplot2`

You can find the ggplot2 cheatsheet here.

The Canvas

The first component is the data:

ggplot(data = mpg)

This can be simplified into ggplot(mpg).

The second component sets the way variables are mapped on the axes. This is done with the aes() (aesthetics) function:

ggplot(data = mpg, mapping = aes(x = displ, y = hwy))

This can be simplified into ggplot(mpg, aes(displ, hwy)).

Geometric representations of the data

Onto this canvas, we can add “geoms” (geometrical objects) representing the data. The type of “geom” defines the type of representation (e.g. boxplot, histogram, bar chart).

To represent the data as a scatterplot, we use the geom_point() function:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point()

We can colour-code the points in the scatterplot based on the drv variable, showing the lower fuel efficiency of 4WD vehicles:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = drv))

Or we can colour-code them based on the class variable:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class))

Multiple “geoms” can be added on top of each other. For instance, we can add a smoothed conditional means function that aids at seeing patterns in the data with geom_smooth():

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  geom_smooth()

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Thanks to the colour-coding of the types of car, we can see that the cluster of points in the top right corner all belong to the same type: 2 seaters. Those are outliers with high power, yet high few efficiency due to their smaller size.

The default smoothing function uses the LOESS (locally estimated scatterplot smoothing) method, which is a nonlinear regression. But maybe a linear model would actually show the general trend better. We can change the method by passing it as an argument to geom_smooth():

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  geom_smooth(method = lm)

`geom_smooth()` using formula = 'y ~ x'

Of course, we could apply the smoothing function to each class instead of the entire data. It creates a busy plot but shows that the downward trend remains true within each type of car:

ggplot(mpg, aes(x = displ, y = hwy, color = class)) +
  geom_point(aes(color = class)) +
  geom_smooth(method = lm)

`geom_smooth()` using formula = 'y ~ x'

Other arguments to geom_smooth() can set the line width, color, or whether or not the standard error (se) is shown:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  )

`geom_smooth()` using formula = 'y ~ x'

Colour scales

If we want to change the colour scale, we add another layer for this:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  )

`geom_smooth()` using formula = 'y ~ x'

scale_color_brewer(), based on color brewer 2.0, is one of many methods to change the color scale. Here is the list of available scales for this particular method:

Labels

We can keep on adding layers. For instance, the labs() function allows to set title, subtitle, captions, tags, axes labels, etc.

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  ) +
  labs(
    title = "Fuel consumption per engine size on highways",
    x = "Engine size (L)",
    y = "Fuel economy (mpg) on highways",
    color = "Type of car",
    caption = "EPA data from https://fueleconomy.gov/"
  )

`geom_smooth()` using formula = 'y ~ x'

Themes

Another optional layer sets one of several preset themes.

Edward Tufte developed, amongst others, the principle of data-ink ratio which emphasizes that ink should be used primarily where it communicates meaningful messages. It is indeed common to see charts where more ink is used in labels or background than in the actual representation of the data.

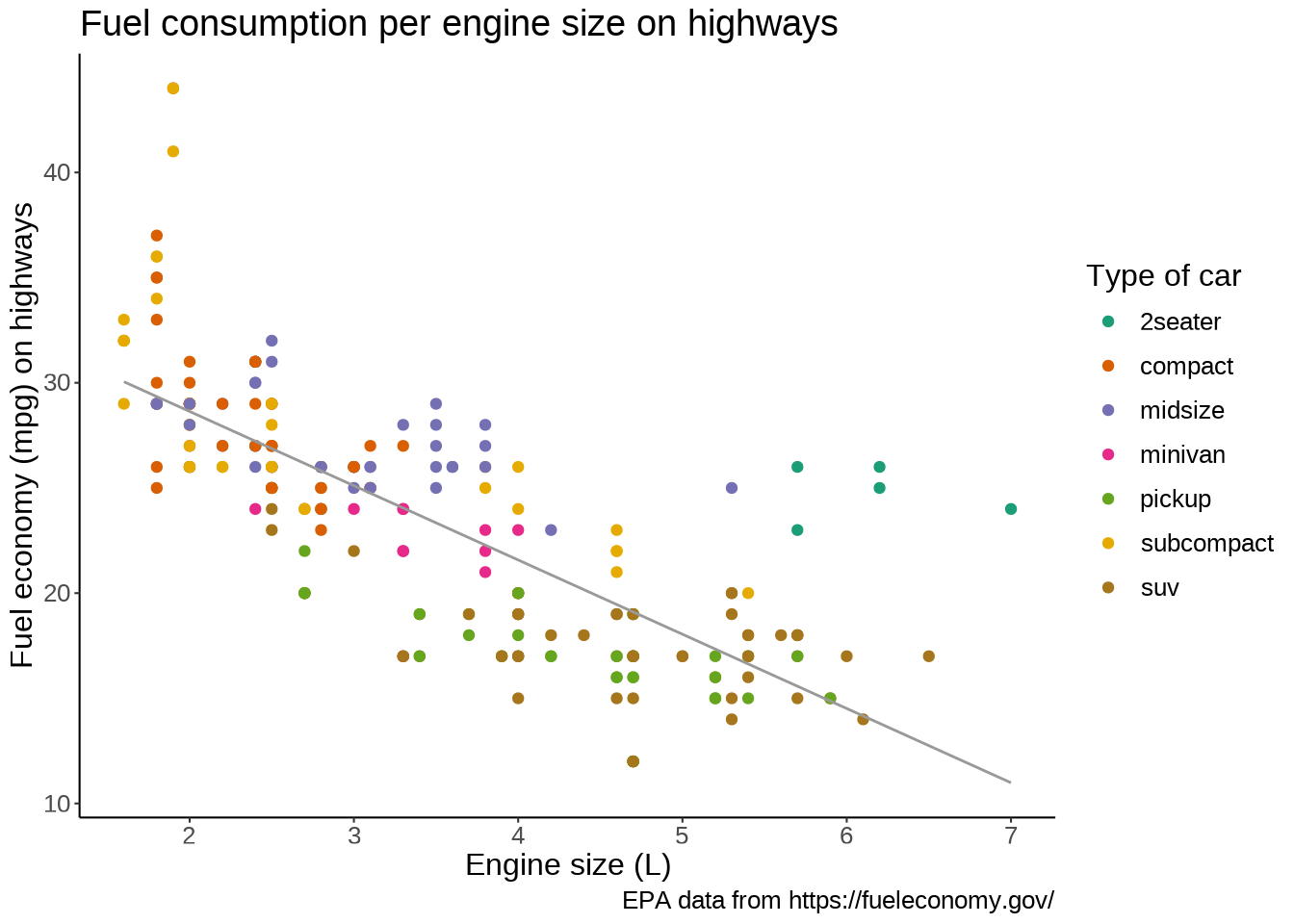

The default ggplot2 theme could be criticized as not following this principle. Let’s change it:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  ) +
  labs(
    title = "Fuel consumption per engine size on highways",
    x = "Engine size (L)",
    y = "Fuel economy (mpg) on highways",
    color = "Type of car",
    caption = "EPA data from https://fueleconomy.gov/"
  ) +
  theme_classic()

`geom_smooth()` using formula = 'y ~ x'

The theme() function allows to tweak the theme in any number of ways. For instance, what if we don’t like the default position of the title and we would rather have it centered?

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  ) +
  labs(
    title = "Fuel consumption per engine size on highways",
    x = "Engine size (L)",
    y = "Fuel economy (mpg) on highways",
    color = "Type of car",
    caption = "EPA data from https://fueleconomy.gov/"
  ) +
  theme_classic() +
  theme(plot.title = element_text(hjust = 0.5))

`geom_smooth()` using formula = 'y ~ x'

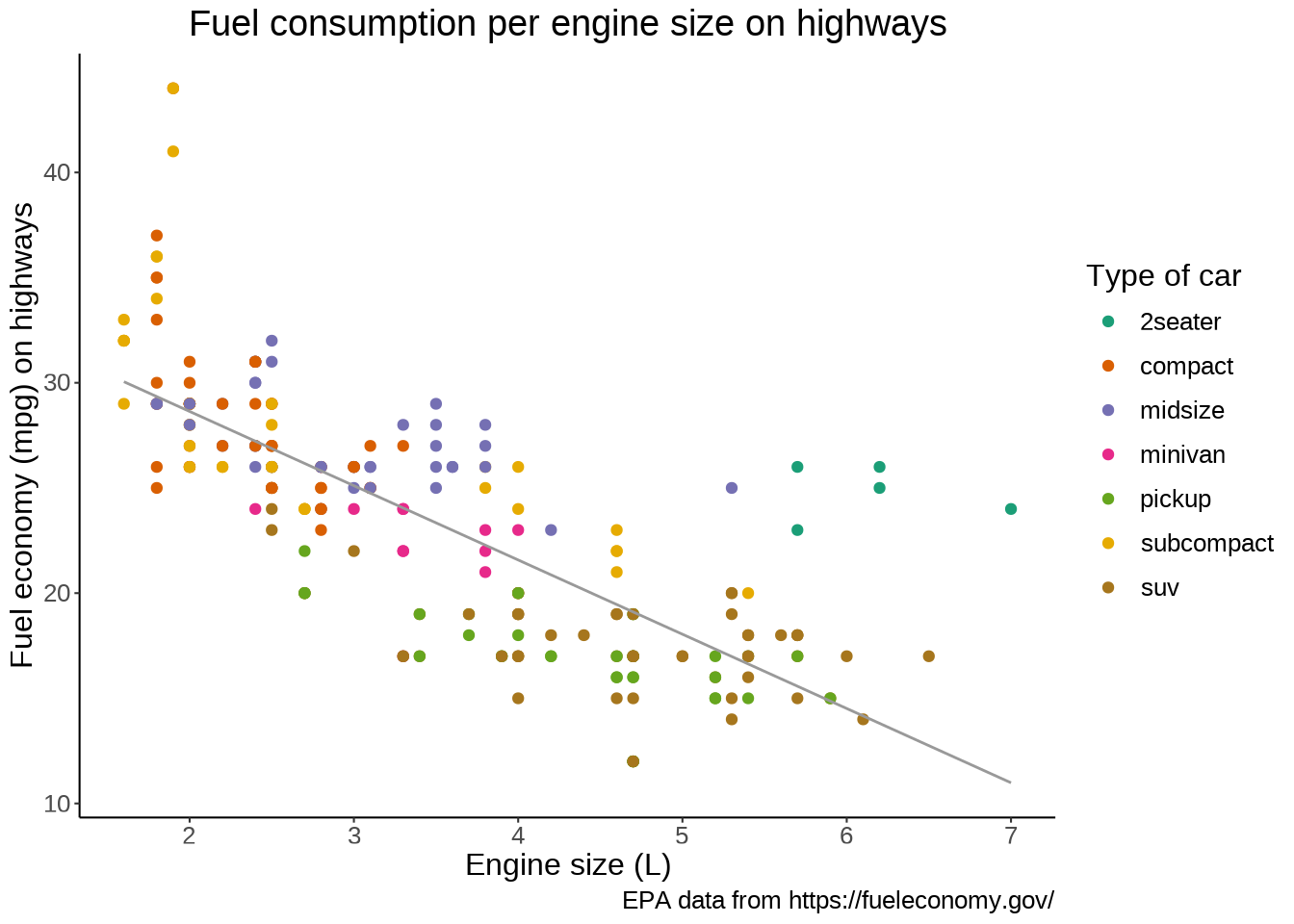

We can also move the legend to give more space to the actual graph:

ggplot(mpg, aes(x = displ, y = hwy)) +
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  ) +
  labs(
    title = "Fuel consumption per engine size on highways",
    x = "Engine size (L)",
    y = "Fuel economy (mpg) on highways",
    color = "Type of car",
    caption = "EPA data from https://fueleconomy.gov/"
  ) +
  theme_classic() +
  theme(plot.title = element_text(hjust = 0.5), legend.position = "bottom")

`geom_smooth()` using formula = 'y ~ x'

As you could see, ggplot2 works by adding a number of layers on top of each other, all following a standard set of rules, or “grammar”. This way, a vast array of graphs can be created by organizing simple components.

`ggplot2` extensions

Thanks to its vast popularity, ggplot2 has seen a proliferation of packages extending its capabilities.

Combining plots

For instance the patchwork package allows to easily combine multiple plots on the same frame.

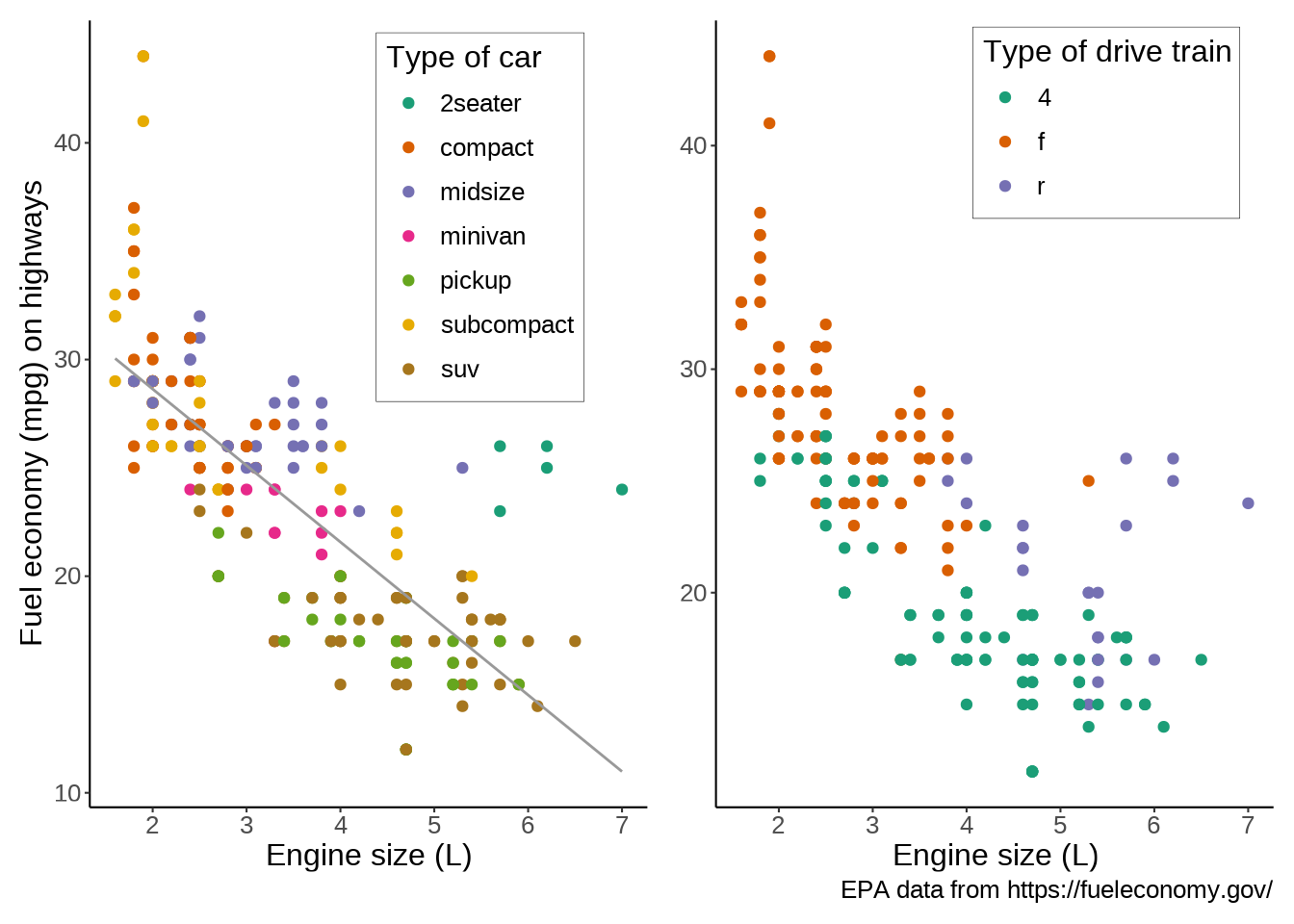

Let’s add a second plot next to our plot. To add plots side by side, we simply add them to each other. We also make a few changes to the labels to improve the plots integration:

library(patchwork)

ggplot(mpg, aes(x = displ, y = hwy)) +        # First plot
  geom_point(aes(color = class)) +
  scale_color_brewer(palette = "Dark2") +
  geom_smooth(
    method = lm,
    se = FALSE,
    color = "#999999",
    linewidth = 0.5
  ) +
  labs(
    x = "Engine size (L)",
    y = "Fuel economy (mpg) on highways",
    color = "Type of car"
  ) +
  theme_classic() +
  theme(
    plot.title = element_text(hjust = 0.5),
    legend.position = c(0.7, 0.75),           # Better legend position
    legend.background = element_rect(         # Add a frame to the legend
      linewidth = 0.1,
      linetype = "solid",
      colour = "black"
    )
  ) +
  ggplot(mpg, aes(x = displ, y = hwy)) +      # Second plot
  geom_point(aes(color = drv)) +
  scale_color_brewer(palette = "Dark2") +
  labs(
    x = "Engine size (L)",
    y = element_blank(),                      # Remove redundant label
    color = "Type of drive train",
    caption = "EPA data from https://fueleconomy.gov/"
  ) +
  theme_classic() +
  theme(
    plot.title = element_text(hjust = 0.5),
    legend.position = c(0.7, 0.87),
    legend.background = element_rect(
      linewidth = 0.1,
      linetype = "solid",
      colour = "black"
    )
  )

`geom_smooth()` using formula = 'y ~ x'

Extensions list

Another popular extension is the gganimate package which allows to create data animations.

A full list of extensions for ggplot2 is shown below (here is the website):
