Data preprocessing

Training DataFrame

base_dir = "<path-of-the-nabirds-dir>"

To be replaced by actual path.

import polars as pl

metadata = pl.read_parquet("metadata.parquet")

Now we can get a subset of our metadata DataFrame with the training metadata only:

metadata_train = metadata.filter(pl.col("is_training_img") == 1)

Quick sanity checks:

print(metadata_train.shape)
print(metadata_train.row(0))
print(metadata_train.columns)

(23929, 12)
('0001afd4-99a1-4a67-b940-d419413e23b3', 307, 179, 492, 224, 645, 'Eared_Grebe_(Nonbreeding/juvenile)', '0645/0001afd499a14a67b940d419413e23b3.jpg', 'Laura_Erickson', 1024, 680, 1)
['UUID', 'bb_x', 'bb_y', 'bb_width', 'bb_height', 'class', 'id', 'path', 'photographer', 'img_width', 'img_height', 'is_training_img']

Read in images

To read in the images, there are many options, including:

• PIL.Image.open from Pillow,
• cv2.imread from OpenCV,
• skimage.io.imread from scikit-image.

Here, we are using imageio.imread from imageio which is an excellent option because it automatically creates a NumPy ndarrays, choosing a dtype based on the image, and it is faster than other options (scikit-image actually uses it now instead of their own implementation).

Initial Dataset class

import os
import imageio.v3 as iio

class NABirdsDatasetInitial:
    """NABirds dataset class."""
    def __init__(self, metadata_file, data_dir):
        self.metadata = metadata_file
        self.data_dir = data_dir
    def __len__(self):
        return len(self.metadata)
    def __getitem__(self, idx):
        img_path = os.path.join(
            self.data_dir,
            self.metadata.get_column('path')[idx]
        )
        img = iio.imread(img_path)
        img_id = self.metadata.get_column('id')[idx].replace('_', ' ')
        img_photographer = self.metadata.get_column('photographer')[idx].replace('_', ' ')
        img_bb_x = self.metadata.get_column('bb_x')[idx]
        img_bb_y = self.metadata.get_column('bb_y')[idx]
        img_bb_width = self.metadata.get_column('bb_width')[idx]
        img_bb_height = self.metadata.get_column('bb_height')[idx]
        element = {
            'image': img,
            'id': img_id,
            'photographer': img_photographer,
            'bbx' : img_bb_x,
            'bby' : img_bb_y,
            'bbwidth' : img_bb_width,
            'bbheight' : img_bb_height
        }
        return element

Instantiate our class

img_dir = os.path.join(base_dir, "images")

nabirds_train_initial = NABirdsDatasetInitial(
    metadata_train,
    img_dir
)

Print an element

next(iter(nabirds_train_initial))

{'image': array([[[ 99, 119, 143],
         [102, 122, 146],
         [104, 124, 148],
         ...,
         [105, 116, 136],
         [106, 117, 137],
         [106, 117, 137]],

        [[102, 122, 146],
         [101, 121, 145],
         [100, 120, 144],
         ...,
         [101, 112, 132],
         [101, 112, 132],
         [102, 113, 133]],

        [[106, 124, 148],
         [104, 122, 146],
         [102, 120, 144],
         ...,
         [ 99, 110, 130],
         [ 99, 110, 130],
         [101, 112, 132]],

        ...,

        [[112, 129, 159],
         [115, 132, 162],
         [116, 133, 163],
         ...,
         [102, 109, 127],
         [101, 108, 126],
         [ 97, 104, 122]],

        [[115, 132, 162],
         [117, 134, 164],
         [118, 135, 165],
         ...,
         [ 98, 105, 123],
         [101, 108, 126],
         [101, 108, 126]],

        [[116, 133, 163],
         [117, 134, 164],
         [118, 135, 165],
         ...,
         [ 98, 105, 123],
         [102, 109, 127],
         [101, 108, 126]]], shape=(680, 1024, 3), dtype=uint8),
 'id': 'Eared Grebe (Nonbreeding/juvenile)',
 'photographer': 'Laura Erickson',
 'bbx': 307,
 'bby': 179,
 'bbwidth': 492,
 'bbheight': 224}

Note the image values between 0 and 255.

Display a sample of data

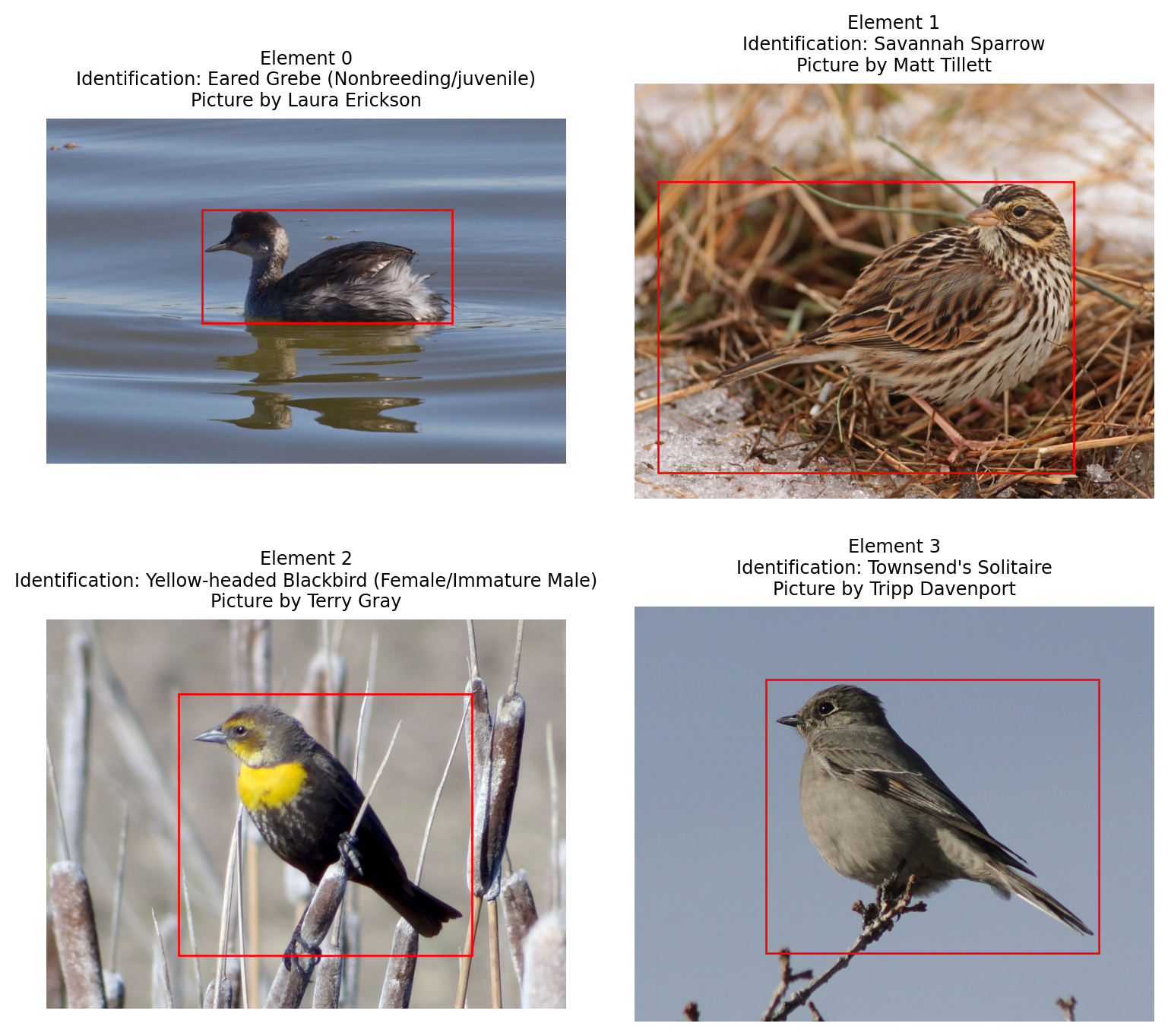

Let’s display the first 4 images and their bounding boxes:

import matplotlib.pyplot as plt
import matplotlib.patches as patches

fig = plt.figure(figsize=(8, 8))

for i, element in enumerate(nabirds_train_initial):
    ax = plt.subplot(2, 2, i + 1)
    plt.tight_layout()
    ax.set_title(
        f'Element {i}\nIdentification: {element['id']}\nPicture by {element['photographer']}',
        fontsize=9
    )
    ax.axis('off')
    plt.imshow(element['image'])
    rect = patches.Rectangle(
        (element['bbx'], element['bby']),
        element['bbwidth'],
        element['bbheight'],
        linewidth=1,
        edgecolor='r',
        facecolor='none'
    )
    ax.add_patch(rect)
    if i == 3:
        plt.show()
        break

Print info on a sample of data

for i, element in enumerate(nabirds_train_initial):
    print(f'Image dimensions: {element['image'].shape}, data type: {element['image'].dtype}'
    )
    if i == 3:
        break

Image dimensions: (680, 1024, 3), data type: uint8
Image dimensions: (819, 1024, 3), data type: uint8
Image dimensions: (768, 1024, 3), data type: uint8
Image dimensions: (817, 1024, 3), data type: uint8

Notice how the images are all of different sizes. This is a problem. We are also not making use of the bounding boxes this dataset comes with, hence using parts of images we know do not contain any bird unnecessarily.

We will address these problems in the next section.

Needed transformations

Raw data seldom works without being transformed.

We should get rid of the parts of the images that are outside of the bounding boxes containing the birds.

Also, a neural network will need images of the same size and our images come in all sorts of sizes.

What size to chose? xxx

Cleaning Dataset class

import imageio.v3 as iio
from skimage.transform import resize
import numpy as np

class CleaningDataset:
    """Cleaning dataset class."""
    def __init__(self, metadata_file, source_dir, target_dir, target_size=(224, 224)):
        self.metadata_file = metadata_file
        self.source_dir = source_dir
        self.target_dir = target_dir
        self.target_size = target_size

    def __len__(self):
        return len(self.metadata_file)

    def __getitem__(self, idx):
        """Returns (processed_img_array, save_path)"""

        # Build paths
        read_path = os.path.join(
            self.source_dir,
            self.metadata_file.get_column('path')[idx]
        )
        save_path = os.path.join(
            self.target_dir,
            self.metadata_file.get_column('path')[idx]
        )

        # Load image
        try:
            img = iio.imread(read_path)
        except Exception as e:
            print(f"Error loading {filename}: {e}")
            return None, None

        # If a file has an alpha channel, drop it
1        if img.shape[2] == 4:
            img = img[:,:,:3]

        # Get metadata
        id = self.metadata_file.get_column('id')[idx].replace('_', ' ')
        photographer = self.metadata_file.get_column('photographer')[idx].replace('_', ' ')

        # Get bounding box data
        bbx = self.metadata_file.get_column('bb_x')[idx]
        bby = self.metadata_file.get_column('bb_y')[idx]
        bbw = self.metadata_file.get_column('bb_width')[idx]
        bbh = self.metadata_file.get_column('bb_height')[idx]

        # Crop image
        img_cropped = img[bby:bby+bbh, bbx:bbx+bbw]

        # Resize img to target size with padding to avoid distortion
        h, w, _ = img_cropped.shape
        target_h, target_w = self.target_size

        # Calculate the scaling factor to fit the image inside the box
        scale = min(target_h / h, target_w / w)

        # Calculate the new dimensions of the image
        new_h, new_w = int(h * scale), int(w * scale)

        # Resize
        img_resized = resize(img_cropped, (new_h, new_w), anti_aliasing=True)

        # Create a black canvas (zeros) of the target size
        out_img = np.zeros((target_h, target_w, img.shape[2]), dtype=img_resized.dtype)

        # Place the resized image in the center of the canvas
        y_offset = (target_h - new_h) // 2
        x_offset = (target_w - new_w) // 2
        out_img[y_offset:y_offset+new_h, x_offset:x_offset+new_w] = img_resized

        # Convert back to uint8 (0-255)
2        final_img = (out_img * 255).astype(np.uint8)

        return final_img, save_path

1

xxx

2

skimage returns elements with a dtype(float64) (values from 0 to 1), but we want to save space on disk.

Create the clean data in parallel

Built-in multiprocessing in Python can be done with either of the ProcessPoolExecutor class from the concurrent.futures module or the Pool class from the multiprocessing package.

Let’s use the first one:

from concurrent.futures import ProcessPoolExecutor
from tqdm import tqdm  # to display a progress bar

Let’s instantiate our CleaningDataset:

cleaned_img_dir = os.path.join(base_dir, "cleaned_images")

dataset_to_clean = CleaningDataset(
    metadata_file=metadata_train,
    source_dir=img_dir,
    target_dir=cleaned_img_dir
)

We can now create a helper function:

def process_idx(i):
    """Helper function for the parallel worker."""
    img, path = dataset_to_clean[i]
    if img is not None:
        # Create target directory if it doesn't exist
        os.makedirs(os.path.dirname(path), exist_ok=True)
        # Save cleaned image
        iio.imwrite(path, img)
        return 1 # Success
    return 0 # Failure

And run it in parallel:

# Use as many workers as you have CPU cores
with ProcessPoolExecutor() as executor:
    # Map indices to the process function
    results = list(tqdm(
        executor.map(process_idx, range(len(dataset_to_clean))),
        total=len(dataset_to_clean),
        desc="Cleaning Images"
    ))

print(f"Done. {sum(results)} images processed.")

Done. 23929 images processed.

You can watch the parallel work live with an application such as htop (on your machine or the cluster) or btop (on your machine).

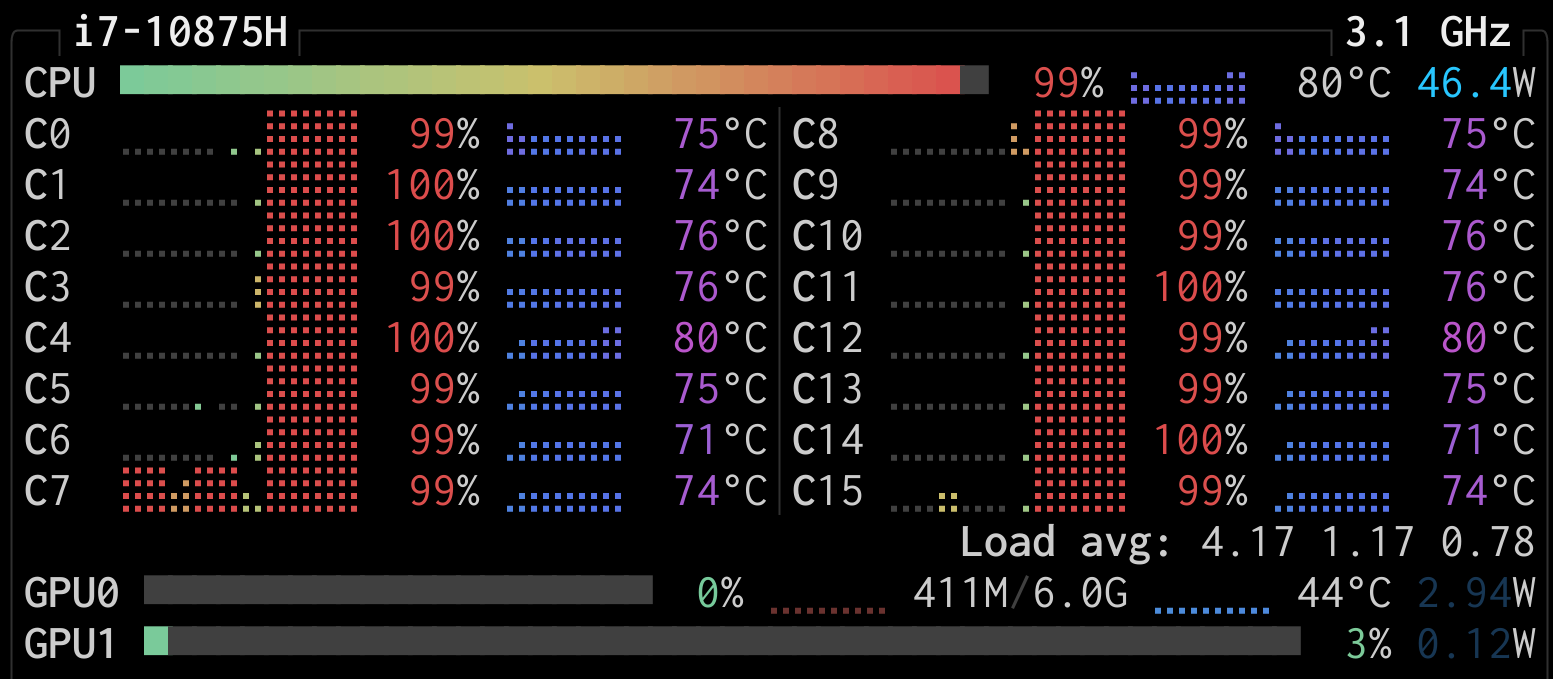

Here is a screenshot I took from btop on my machine while creating the cleaned images. You can see that my 16 cores are working in parallel:

New Dataset class

class NABirdsDataset:
    """NABirds dataset class."""
    def __init__(self, metadata_file, data_dir):
        self.metadata_file = metadata_file
        self.data_dir = data_dir
    def __len__(self):
        return len(self.metadata_file)
    def __getitem__(self, idx):
        path = os.path.join(
            self.data_dir,
            self.metadata_file.get_column('path')[idx]
        )
        img = iio.imread(path)
        id = self.metadata_file.get_column('id')[idx].replace('_', ' ')
        photographer = self.metadata_file.get_column('photographer')[idx].replace('_', ' ')
        element = {
            'image': img,
            'id': id,
            'photographer': photographer,
        }
        return element

TipEquivalent using PyTorch

PyTorch provides torch.utils.data.Dataset, an abstract class representing a dataset. You need to write a subclass of torch.utils.data.Dataset (let’s call it NABirdsDataset) so that it inherits from torch.utils.data.Dataset, but with characteristics matching our own dataset.

A PyTorch custom Dataset class must implement three methods:

• __init__: initializes a new instance (object) of the class,
• __len__: returns the number of elements in the new dataset class, and
• __getitem__: loads and returns an element from the dataset at a given index idx:

from torch.utils.data import Dataset

class NABirdsDatasetPyTorch(Dataset):
    """NABirds dataset class."""
    def __init__(self, metadata_file, data_dir, transform=None):
        self.metadata_file = metadata_file
        self.data_dir = data_dir
        self.transform = transform
    def __len__(self):
        return len(self.metadata_file)
    def __getitem__(self, idx):
        path = os.path.join(
            self.data_dir,
            self.metadata_file.get_column('path')[idx]
        )
        img = iio.imread(path)
        id = self.metadata_file.get_column('id')[idx].replace('_', ' ')
        photographer = self.metadata_file.get_column('photographer')[idx].replace('_', ' ')
        element = {
            'image': img,
            'id': img_id,
            'photographer': img_photographer,
        }
        if self.transform:
            element = self.transform(element)
        return element

Instantiate

Now we can instantiate the new class with the new data:

nabirds_train = NABirdsDataset(
    metadata_train,
    cleaned_img_dir
)

Print info on a sample

for i, element in enumerate(nabirds_train):
    print(f'Image new dimensions: {element['image'].shape}, data type: {element['image'].dtype}'
    )
    if i == 3:
        break

Image new dimensions: (224, 224, 3), data type: uint8
Image new dimensions: (224, 224, 3), data type: uint8
Image new dimensions: (224, 224, 3), data type: uint8
Image new dimensions: (224, 224, 3), data type: uint8

Notice how images are all of width and height 224 now.

Display a sample

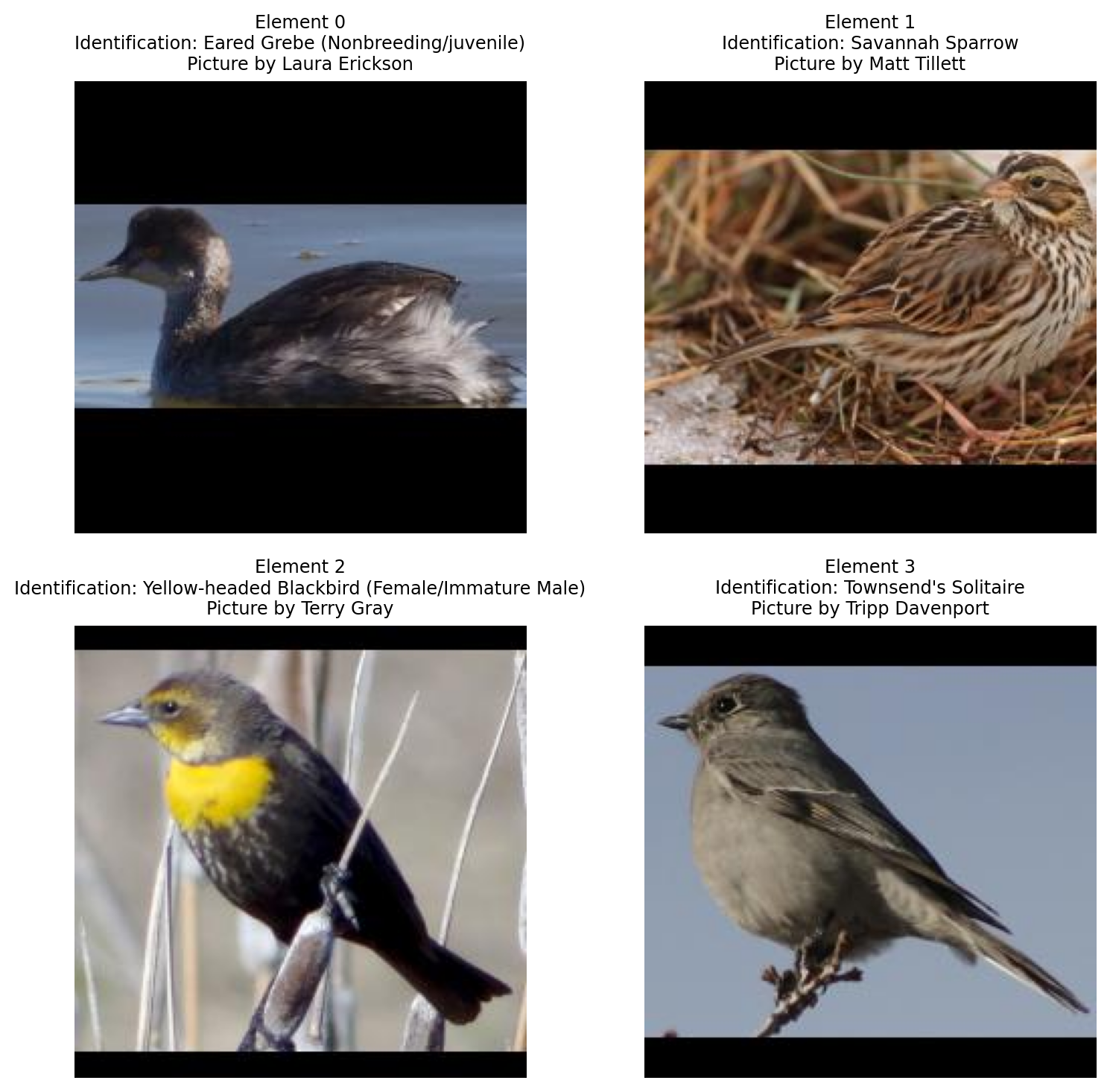

Let’s display the first 4 cleaned images to make sure they look like what we expect:

fig = plt.figure(figsize=(8, 8))

for i, element in enumerate(nabirds_train):
    ax = plt.subplot(2, 2, i + 1)
    plt.tight_layout()
    ax.set_title(
        f'Element {i}\nIdentification: {element['id']}\nPicture by {element['photographer']}',
        fontsize=9
    )
    ax.axis('off')
    plt.imshow(element['image'])
    if i == 3:
        plt.show()
        break
