import os
import polars as pl
import imageio.v3 as iio
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from skimage.transform import resize
import numpy as np
import grain.python as grain
import jax.numpy as jnp
img_dir = os.path.join(base_dir, "images")
bb_file = os.path.join(base_dir, "bounding_boxes.txt")
classes_translation_file = os.path.join(base_dir, "classes_fixed.txt")
class_labels_file = os.path.join(base_dir, "image_class_labels.txt")
img_file = os.path.join(base_dir, "images.txt")
photographers_file = os.path.join(base_dir, "photographers_fixed.txt")
sizes_file = os.path.join(base_dir, "sizes.txt")
train_test_split_file = os.path.join(base_dir, "train_test_split.txt")
bb = pl.read_csv(
bb_file,
separator=" ",
has_header=False,
new_columns=["UUID", "bb_x", "bb_y", "bb_width", "bb_height"]
)
classes = pl.read_csv(
class_labels_file,
separator=" ",
has_header=False,
new_columns=["UUID", "class"]
)
classes_translation = pl.read_csv(
classes_translation_file,
separator=" ",
has_header=False,
new_columns=["class", "id"]
)
img_paths = pl.read_csv(
img_file,
separator=" ",
has_header=False,
new_columns=["UUID", "path"]
)
photographers = pl.read_csv(
photographers_file,
separator=" ",
has_header=False,
new_columns=["UUID", "photographer"]
)
sizes = pl.read_csv(
sizes_file,
separator=" ",
has_header=False,
new_columns=["UUID", "img_width", "img_height"]
)
train_test_split = pl.read_csv(
train_test_split_file,
separator=" ",
has_header=False,
new_columns=["UUID", "is_training_img"]
)
classes_metadata = (
classes.join(classes_translation, on="class")
)
metadata = (
bb.join(classes_metadata, on="UUID")
.join(img_paths, on="UUID")
.join(photographers, on="UUID")
.join(sizes, on="UUID")
.join(train_test_split, on="UUID")
)
metadata_train = metadata.filter(pl.col("is_training_img") == 1)
class NABirdsDataset:
"""NABirds dataset class."""
def __init__(self, metadata_file, data_dir):
self.metadata = metadata_file
self.data_dir = data_dir
def __len__(self):
return len(self.metadata)
def __getitem__(self, idx):
img_path = os.path.join(
self.data_dir,
self.metadata.get_column('path')[idx]
)
img = iio.imread(img_path)
img_id = self.metadata.get_column('id')[idx].replace('_', ' ')
img_photographer = self.metadata.get_column('photographer')[idx].replace('_', ' ')
img_bb_x = self.metadata.get_column('bb_x')[idx]
img_bb_y = self.metadata.get_column('bb_y')[idx]
img_bb_width = self.metadata.get_column('bb_width')[idx]
img_bb_height = self.metadata.get_column('bb_height')[idx]
sample = {
'image': img,
'id': img_id,
'photographer': img_photographer,
'bbx' : img_bb_x,
'bby' : img_bb_y,
'bbwidth' : img_bb_width,
'bbheight' : img_bb_height
}
return sample
nabirds_train = NABirdsDataset(
metadata_train,
img_dir
)
class NormAndCast(grain.MapTransform):
"""Transform class to normalize and cast images to float32."""
def map(self, element):
element['image'] = jnp.array(element['image'], dtype=jnp.float32) / 255.0
return element
class BbCrop(grain.MapTransform):
"""Transform class to crop images to their bounding boxes."""
def map(self, element):
img = element['image']
bbx = element['bbx']
bby = element['bby']
bbwidth = element['bbwidth']
bbheight = element['bbheight']
img_cropped = img[bby:bby+bbheight, bbx:bbx+bbwidth]
element['image'] = img_cropped
return element
target = (224, 224)
class PaddingResize(grain.MapTransform):
"""Transform class to resize images to a given size with padding to avoid distortion."""
def map(self, element):
img = element['image']
h, w, _ = img.shape
target_h, target_w = target
# Calculate the scaling factor to fit the image inside the box
scale = min(target_h / h, target_w / w)
# Calculate the new dimensions of the image
new_h = int(h * scale)
new_w = int(w * scale)
# Resize the image to these new dimensions
img_resized = resize(img, (new_h, new_w), anti_aliasing=True)
# Create a black canvas (zeros) of the target size
out_img = np.zeros((target_h, target_w, img.shape[2]), dtype=img_resized.dtype)
# Place the resized image in the center of the canvas
y_offset = (target_h - new_h) // 2
x_offset = (target_w - new_w) // 2
out_img[y_offset:y_offset+new_h, x_offset:x_offset+new_w] = img_resized
element['image'] = out_img
return element
transformations = [NormAndCast(), BbCrop(), PaddingResize()]Data augmentation
What is data augmentation?
The AlbumentationsX site has a good explanation of the concept of data augmentation.
cite (from bib tex file): - https://arxiv.org/abs/2205.01491
Tools
cite (from bib tex file): - paper on libraries
skimage.transform from scikit-image (that we used previously to create a Transform that resizes our images with padding).
Augmentation techniques
import dm_pix as pix
from jax import random
# class Augment(grain.MapTransform):
# """Transform class to normalize and cast images to float32."""
# def map(self, element):
# img = element['image']
# key = random.PRNGKey(0)
# delta = 0.7
# img_brightness = pix.random_brightness(
# key=key,
# image=img,
# max_delta=delta
# )
# key = random.PRNGKey(1)
# img_flip = pix.random_flip_left_right(
# key=key,
# image=img_brightness
# )
# element['image'] = img_flip
# return element
class RandomFlip(grain.MapTransform):
"""Transform class to normalize and cast images to float32."""
def map(self, element):
img = element['image']
key = random.PRNGKey(0)
img_flip = pix.random_flip_left_right(
key=key,
image=img
)
element['image'] = img_flip
return elementtransformations = [NormAndCast(), BbCrop(), PaddingResize(), RandomFlip()]nabirds_train_seqsampler = grain.SequentialSampler(
num_records=4,
shard_options=grain.NoSharding()
)nabirds_train_dl = grain.DataLoader(
data_source=nabirds_train,
operations=transformations,
sampler=nabirds_train_seqsampler,
worker_count=0

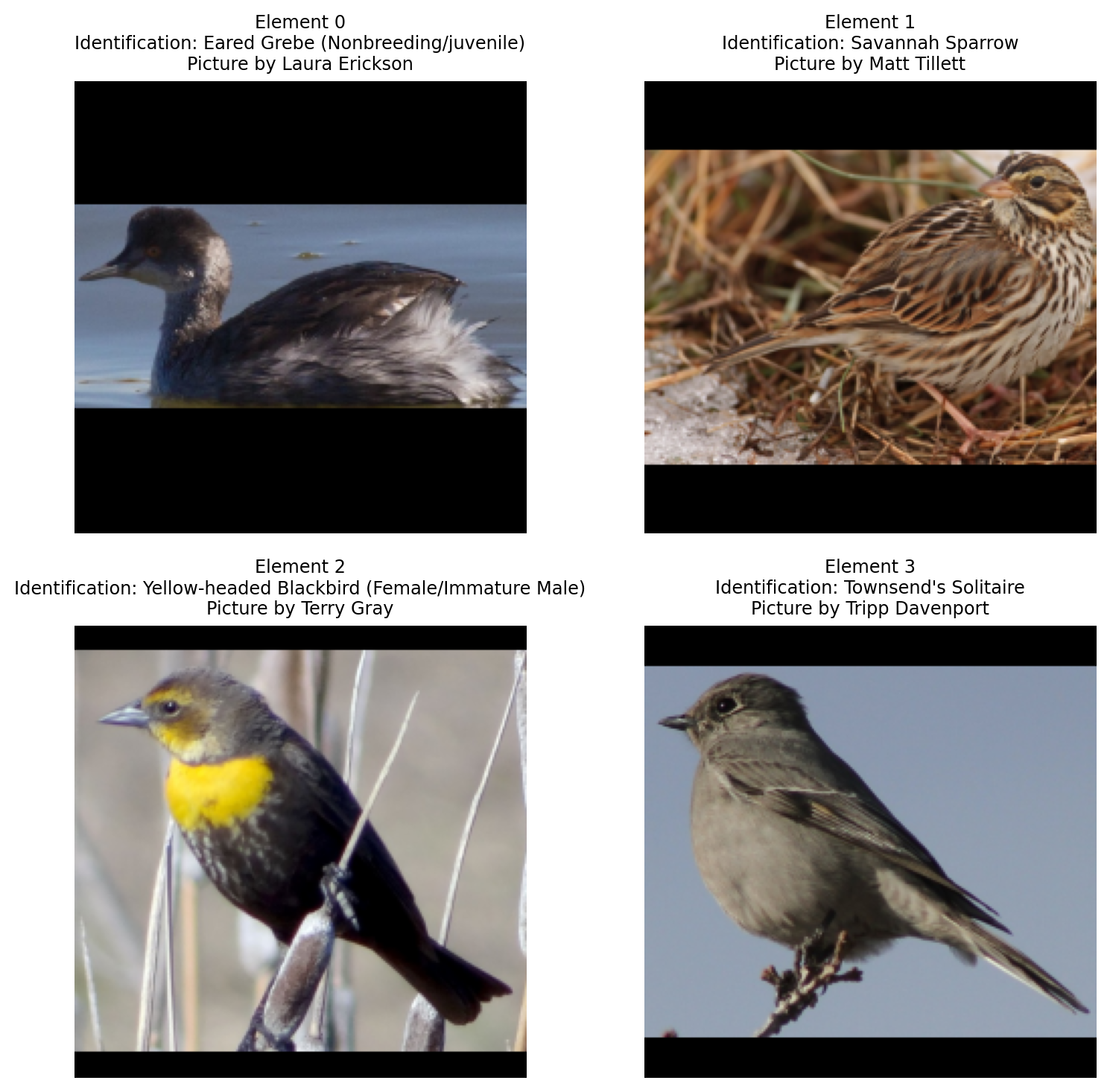

)fig = plt.figure(figsize=(8, 8))
for i, element in enumerate(nabirds_train_dl):
ax = plt.subplot(2, 2, i + 1)
plt.tight_layout()
ax.set_title(
f'Element {i}\nIdentification: {element['id']}\nPicture by {element['photographer']}',
fontsize=9
)
ax.axis('off')
plt.imshow(element['image'])
plt.show()
nabirds_train_isampler = grain.IndexSampler(
num_records=200,
num_epochs=1,
# shard_options=grain.sharding.ShardOptions(shard_index=0, shard_count=1, drop_remainder=True),
shard_options=grain.ShardOptions(shard_index=0, shard_count=1, drop_remainder=True),
shuffle=True,
seed=0)
nabirds_train_dl = grain.DataLoader(
data_source=nabirds_train,
operations=transformations,
sampler=nabirds_train_isampler,
worker_count=0
)

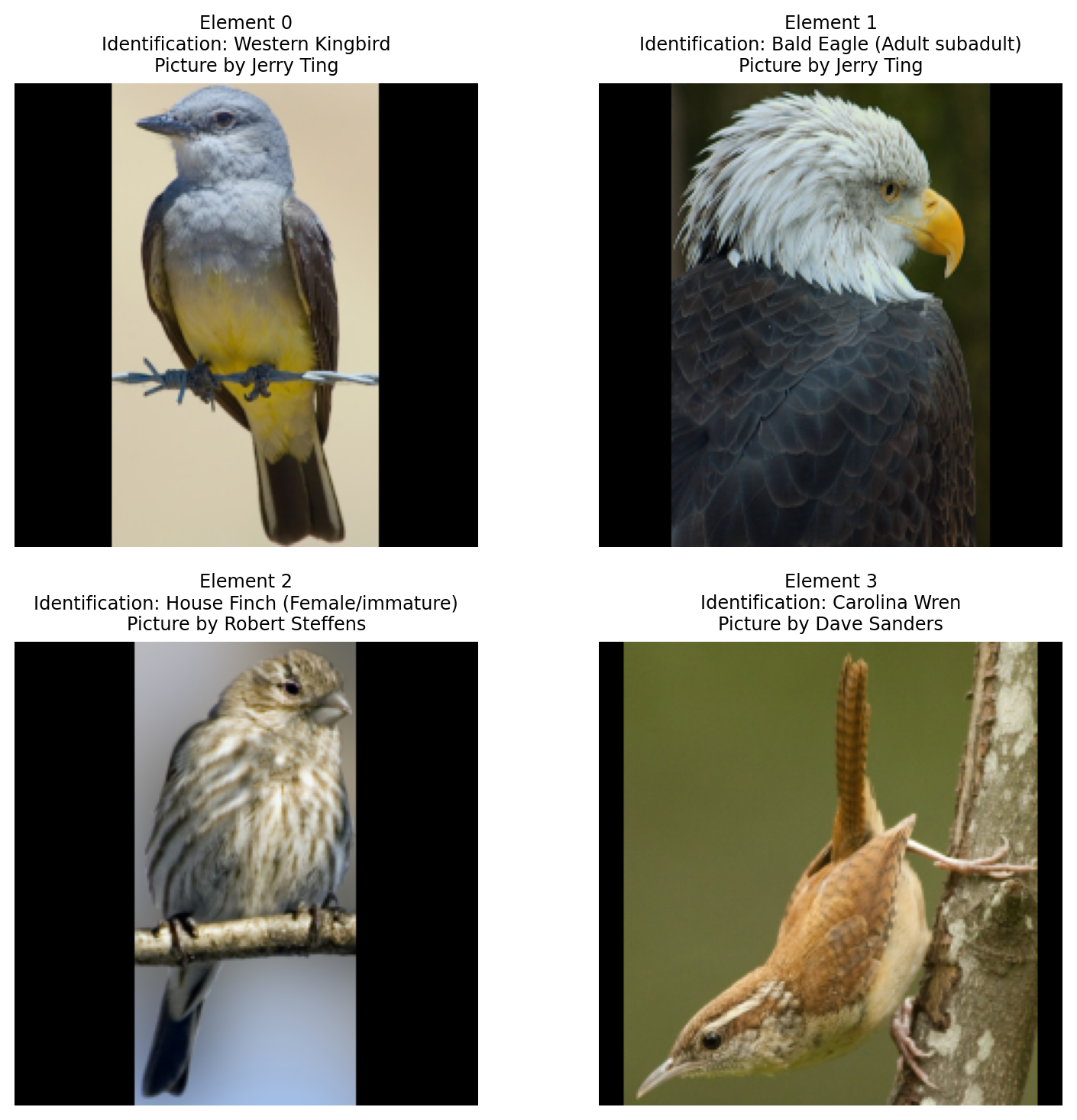

fig = plt.figure(figsize=(8, 8))
for i, element in enumerate(nabirds_train_dl):
ax = plt.subplot(2, 2, i + 1)
plt.tight_layout()
ax.set_title(
f'Element {i}\nIdentification: {element['id']}\nPicture by {element['photographer']}',
fontsize=9
)
ax.axis('off')
plt.imshow(element['image'])
if i == 3:
plt.show()
break
